HP Proliant ML350E G8

HP ProLiant ML350E Generation 8 (Gen8)

Overview
The HP ProLiant ML350e Gen8 is a dual processor tower platform, which is built on the latest Intel® Xeon® E5-2400 processors to create unique system architecture. This unique architecture as well as flexible deployment options allow the businesses to scale as needed so they can optimize their IT spending dollars. The HP ProLiant ML350e Gen8 delivers the industry's most powerful embedded management technology with HP integrated Lights-Out 4 (iLO4), which allows businesses to manage the servers anytime and from anywhere.

HP ProLiant ML350e Generation 8 (Gen8)

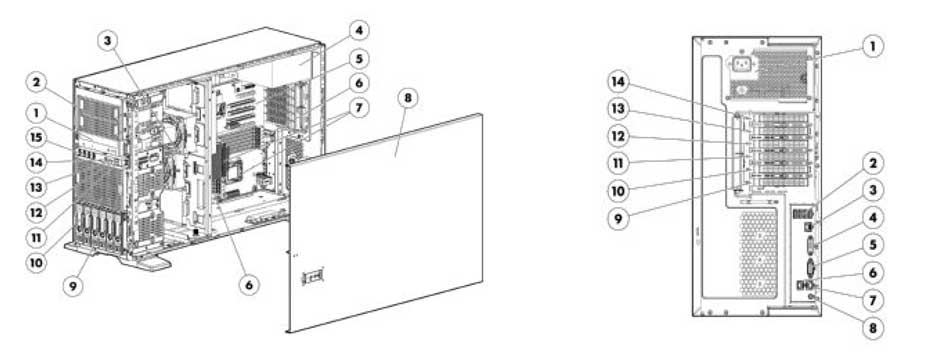

Front View:

1. SATA DVD ROM or DVD RW optical drive
2. Two (2) removable media bays
3. Two (2) standard system fans
4. One (1) standard 460W Non-Hot Plug Power Supply
5. Six (6) PCIe expansion slots (4 PCIe 3.0 and 2 PCIe 2.0)
6. 12 total DIMM slots: DDR3 Registered (RDIMM) or Unbuffered (UDIMM) memory (6 DIMM slots per CPU)
7. Processor and processor heatsink
8. Quick removal access panel
9. Standard drive cage (4LFF or 6LFF or 8SFF)
10. Optional drive cage (6LFF or 8SFF)
11. Power On/Standby button and system power LED button
12. NIC status LED
13. Health LED
14. UID LED button
15. Four (4) USB connectors

Rear View:

1. One (1) standard 460W Non-Hot Plug Power supply
2. Four (4) USB connectors
3. iLO connector
4. Video connector
5. Serial connector
6. NIC connector 2
7. NIC connector 1
8. UID LED button
9. PCIe slot 1 (for processor 1)
10. PCIe slot 2 (for processor 1)
11. PCIe slot 3 (for processor 2)
12. PCIe slot 4 (for processor 2)
13. PCIe slot 5 (for processor 1)
14. PCIe slot 6 (for processor 1)

Standard Features

Processor

Eight-Core Processors
NOTE: All support up to 1600MHz DDR3 memory speeds.
Intel® Xeon® E5-2470 (2.3GHz/8-core/95W/20MB) Processor
Intel® Xeon® E5-2450 (2.1GHz/8-core/95W/20MB) Processor
Intel® Xeon® E5-2450L (1.8GHz/8-core/70W/20MB) Processor
Six-Core Processors
NOTE:All support up to 1333MHz DDR3 memory speeds.
Intel® Xeon® E5-2440 (2.4GHz/6-core/95W/15MB) Processor
Intel® Xeon® E5-2430 (2.2GHz/6-core/95W/15MB) Processor
Intel® Xeon® E5-2430L (2.0GHz/6-core/60W/15MB) Processor
Intel® Xeon® E5-2420 (1.9GHz/6-core/95W/15MB) Processor
Quad-Core Processors
NOTE: All support up to 1066MHz DDR3 memory speeds.
Intel® Xeon® E5-2407 (2.2GHz/4-core/80W/10MB) Processor
Intel® Xeon® E5-2403 (1.8GHz/4-core/80W/10MB) Processor
NOTE: DDR3 speed is the maximum memory speed of the processor. Actual memory speed may depend on the quantity and type of DIMMs installed.
NOTE: Up to 2 processors supported. Mixing different processor models is not supported.
NOTE: For the Intel® C600 Chipset E5-2400 Series, the letter preceding the model number indicates the Product Line (E3, E5, E7); 2400x v#, 2 = number of CPUs in a Node, 4 is socket/segment designation, 00 = Processor SKU, x = L for low power SKUs and v# (not yet designated) = version number.

Chipset

 Intel® C600 Chipset
Intel® E5-2400 Processor Family

Upgradeability

Upgradeable to two processors
NOTE: Total 8, 12 or 16 cores
Up to 12 DIMM slots available for higher memory capacity
Up to 24 SFF hard drives or 18 LFF hard drives for expanded storage
4 PCIe 3.0 and 2 PCIe 2.0 I/O slots for additional communications and storage expansion Redundant Power Supplies (92% and 94% efficiency)
Tower to rack conversion
Optical drive bays (up to 2)
Security bezel

On System Management Processor

 HP iLO (Firmware: HP iLO4)

Memory
Type

HP SmartMemory
DDR3 Registered (RDIMM) or Unbuffered (UDIMM)
DIMM Slots Available 12 DIMM slots (6 DIMM slots per CPU)
Standard (Entry Models) 2GB (1 x 2GB) Unbuffered DIMMs PC3L-10600E
Standard (Base Models) 4GB (1 x 4GB) Unbuffered DIMMs PC3L-10600E
Standard (Performance Models) 8GB (2 x 4GB) Unbuffered DIMMs PC3L-10600E
Maximum Capacity (RDIMM) 192 GB (12 x 16 GB) RDIMMM
Maximum Capacity (UDIMM) 96 GB (12 x 8 GB) UDIMM
NOTE: Redundant Enablement Kit (part # 664046-B21) is required when Registered DIMM is purchased.
NOTE: HP memory from previous generation servers are not fully compatible with the HP ProLiant ML350e Gen8 Server.
NOTE: To realize the performance memory capabilities listed in this document, HP SmartMemory is required.
NOTE: If one processor is installed, only 6 DIMM slots are available. When populating with two processors 12 DIMM slots are available.
NOTE: Depending on the memory configuration and processor model, the memory speed may run up to 1600MHz, 1333MHz, or 1066MHz.

Network Controller

  HP Ethernet 1Gb 2-port 361i Adapter

Maximum Internal
Storage

CAPACITY CONFIGURATION
Hot Plug LFF SAS 54TB 18 x 3TB
Hot Plug LFF SATA 54TB 18 x 3TB
Hot Plug SFF SAS 28.8TB 24 x 1.2TB
Hot Plug SFF SATA 24TB 24 x 1TB
Non-Hot Plug LFF SATA 12TB 4 x 3TB
Hot Plug SFF SAS SSD 2.4TB 24 x 100GB
Hot Plug LFF SATA SSD 1.8TB 18 x 100GB
